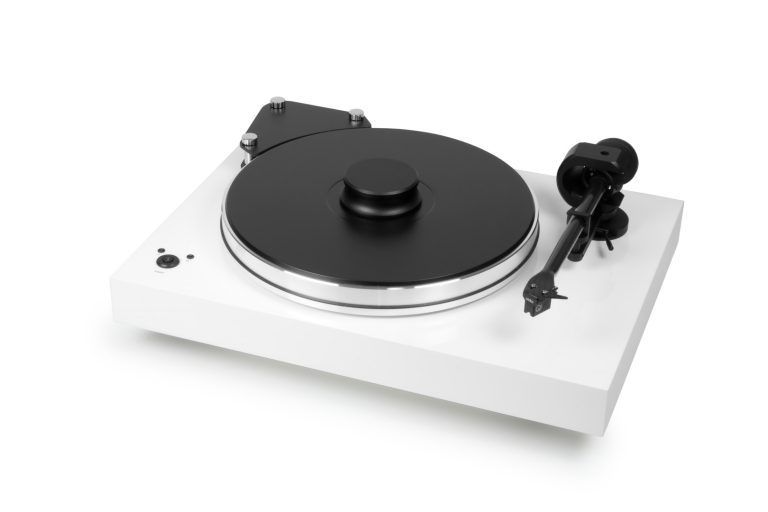

Highend turntable with 9" evo tonearm

Superlative vinyl performance from a compact luxurious turntable/arm configuration!

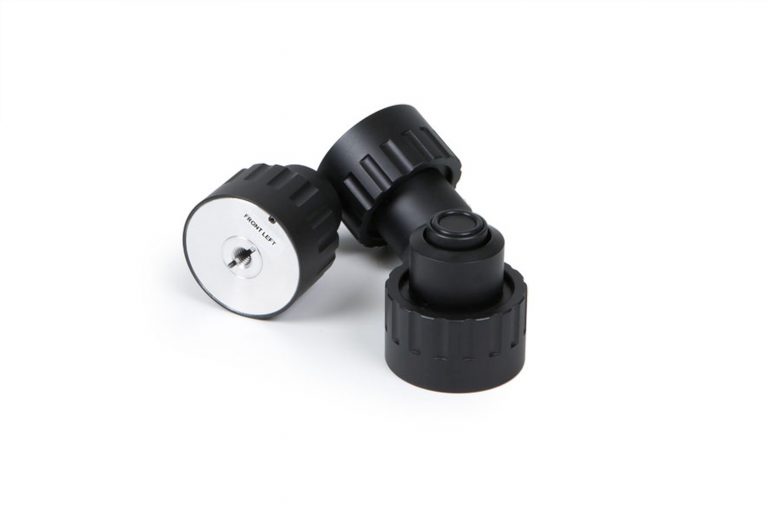

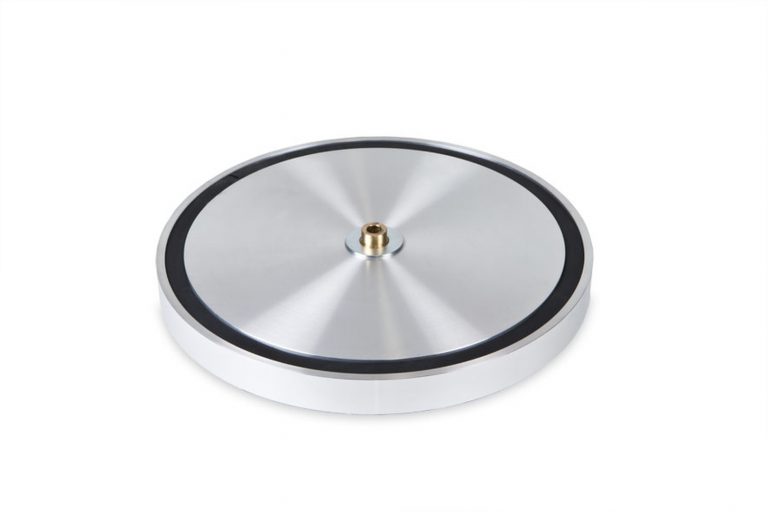

Xtension 9 Evolution incorporates all our turntable design experience from more than 20 years in a slim-line size to fit standard audio racks. Xtension 9 chassis is made from MDF filled with metal granulate, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16 kg total turntable mass. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles. Instead of pure metal for the main platter, we’ve found a perfect alloy which we damped on with thermo plastic elastomers (TPE). Additionally we’ve placed recycled Vinyl records on top (which acts as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension. Pro-Ject Xtension 9 Evolution includes a top-class highend tonearm „9cc Evolution“ and comes complete with a beautiful dustcover.

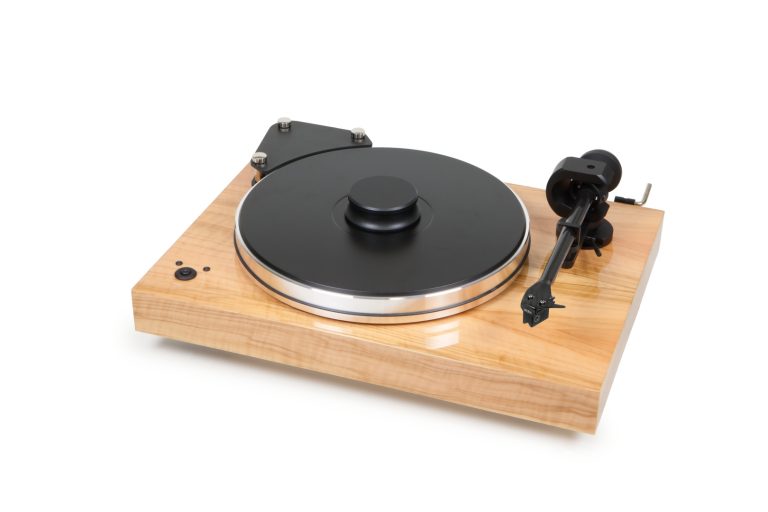

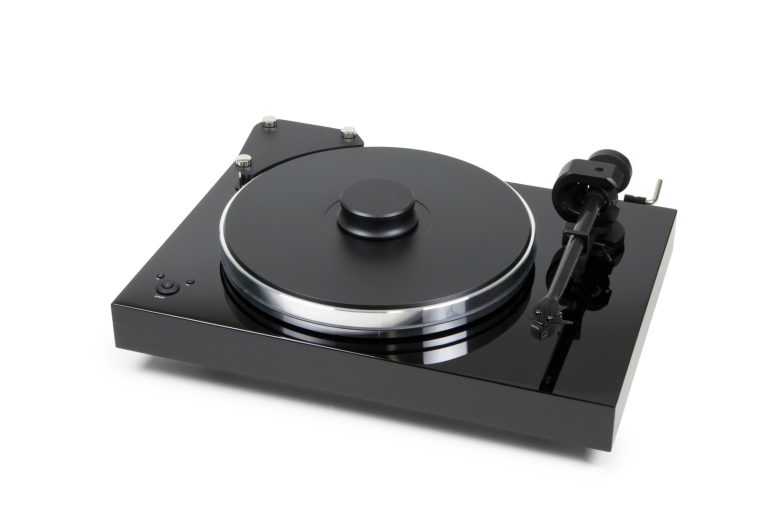

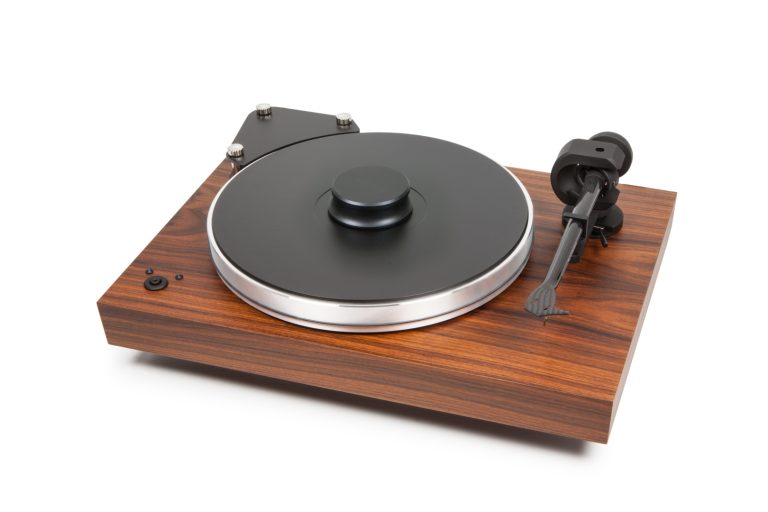

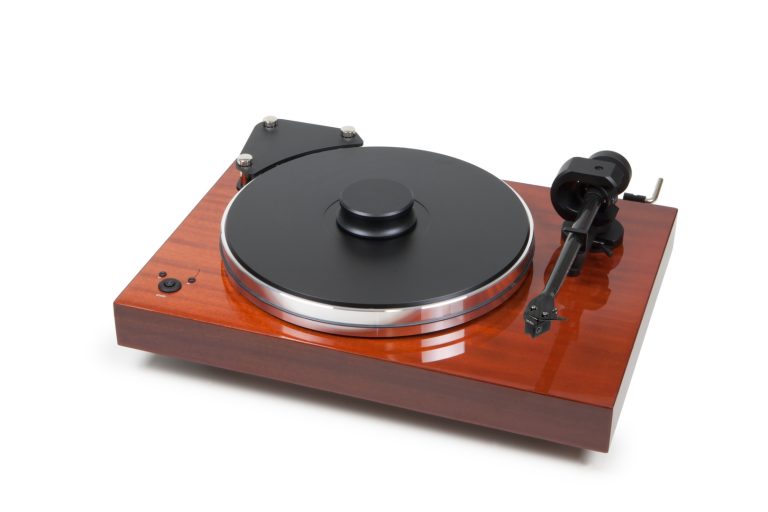

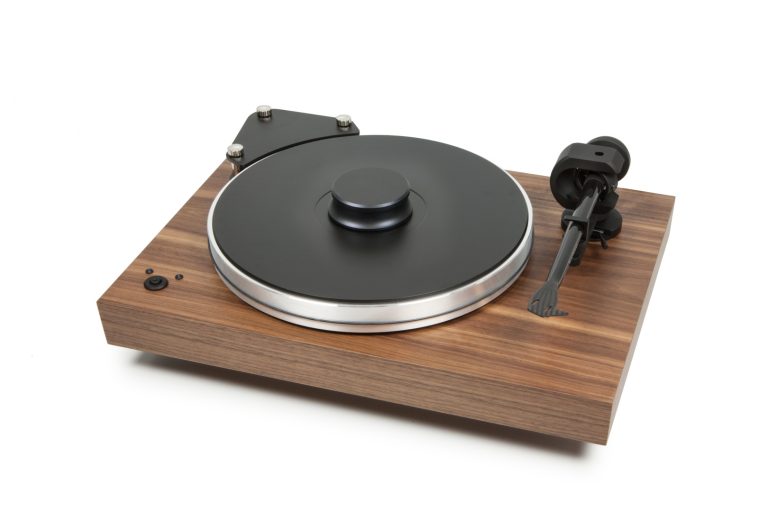

7 different high gloss lacquer finish options are available: piano black, red, white, olive, rosewood, walnut and mahogany.

XLR Option

Pro-Ject Audio Systems offers their highend turntables with premium 5pin>RCA unbalanced arm cable or – by request – with premium balanced 5pin>XLR connection to Pro-Ject Phono Box RS preamplifier. Phono Box RS offers balanced phono inputs, what guarantees superior results in highend vinyl reproduction with a balanced signal source.

NOTE: The signal source and the receiving device have to be equipped with balanced connections. Transmission of audio signals in a balanced mode reduce the influence of interference due to external stray electric fields significantly.

Features
·        Heavy 16 kg belt drive turntable
·        Mass loaded magnetic floating subchassis
·        Precision balanced sandwich-platter
·        Inverted ceramic ball bearing with magnetic support
·        Heavy weight record clamp
·        MDF chassis filled with metal granulate with low levels of resonance and high mass

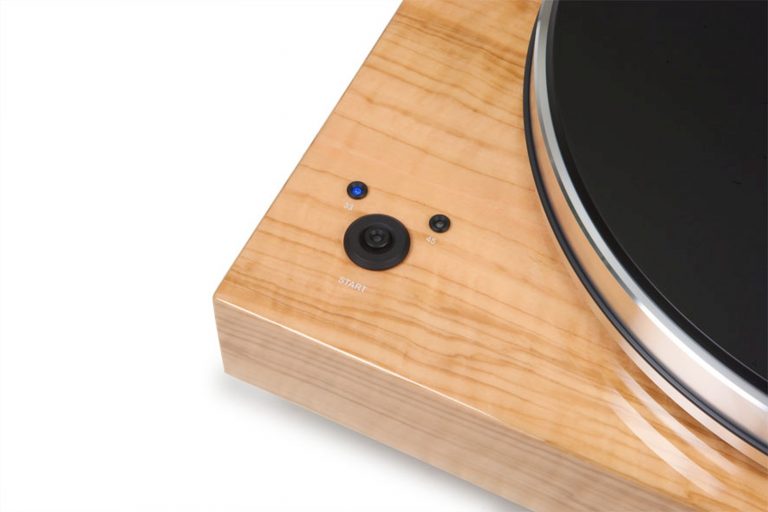

·        Electronic speed control 33/45 rpm
·        Tonearm 9cc Evolution made from carbon fibre
·        Inverted tonearm bearings (ABEC 7 quality)
·        Dust cover included

技术参数

Speed	33, 45 (electronic speed change)
Principle	Belt drive
Platter	300 mm aluminium (TPE damped)
Main bearing	Inverted stainless steel with ceramic ball with antimagnetic support
Wow & flutter	± 0.10% (max)
Speed variance	± 0.09% (max)
Signal to Noise	73 dB
Tonearm	9” cc EVO, Carbon
Effective arm length	230 mm
Effective tonearmmass	8.5 g
Overhang	18.0 mm
Tracking force range	0 - 25 mN
Included accessory	Power supply, dust cover
Power consumption	4 Watts max / < 1 Watt standby
Dimensions	465 x 185 x 350 mm (WxHxD)
Weight	18.0 kg net
